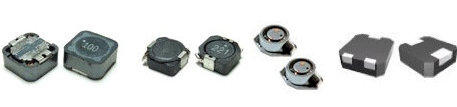

Shielded Power Inductors Minim velit, ex velit culpa sed sint ad fugiat, MOX-SLI-3012 SERIES 3.00mm x 3.00mm x 1.20mm Low Profile, High Current Temp Range: -40C~105C Low Power Loss & DCR Inductance: 1.00uH~47.0uH Isat Max: 1.90 Amps MOX-SLI-3015 SERIES 3.00mm x 3.00mm x 1.50mm Low Profile, High Current Temp Range: -40C~105C Low Power Loss & DCR Inductance: 1.50uH~27.0uH Isat Max: 2.20 Amps MOX-SLI-4012 SERIES 4.00mm x 4.00mm x 1.20mm Low Profile, High Current Temp Range: -40C~105C Low Power Loss & DCR Inductance: 1.20uH~33.0uH Isat Max: 2.30 Amps MOX-SLI-4018 SERIES 4.00mm x 4.00mm x 1.80mm Low Profile, High Current Temp Range: -40C~105C Low Power Loss & DCR Inductance: 1.00uH~47.0uH Isat Max: 2.90 Amps MOX-SLI-5012 SERIES 5.00mm x 5.00mm x 1.20mm Low Profile, High Current Temp Range: -40C~105C Low Power Loss & DCR Inductance: 1.00uH~47.0uH Isat Max: 2.80 Amps MOX-SLI-5020 SERIES 5.00mm x 5.00mm x 2.00mm Low Profile, High Current Temp Range: -40C~105C Low Power Loss & DCR Inductance: 1.00uH~47.0uH Isat Max: 4.00 Amps MOX-SPIL-0301 SERIES 3.00mm x 3.00mm x 1.00mm Low Profile, Epoxy Shielded Temp Range: -40C~105C Low Power Loss & DCR Inductance: 1.20uH~22.0uH Isat Max: 1.65 Amps MOX-SPIL-0302 SERIES 3.00mm x 3.00mm x 1.20mm Low Profile, Epoxy Shielded Temp Range: -40C~105C Low Power Loss & DCR Inductance: 0.68uH~47.0uH Isat Max: 2.20 Amps MOX-SPIL-0305 SERIES 3.00mm x 3.00mm x 1.50mm Low Profile, Epoxy Shielded Temp Range: -40C~105C Low Power Loss & DCR Inductance: 0.68uH~10.0uH Isat Max: 3.50 Amps MOX-SPIL-0412 SERIES 3.90mm x 3.90mm x 1.20mm Low Profile, Epoxy Shielded Temp Range: -40C~105C Low Power Loss & DCR Inductance: 1.00uH~47.0uH Isat Max: 2.40 Amps MOX-SPIL-0415 SERIES 3.90mm x 3.90mm x 1.50mm Low Profile, Epoxy Shielded Temp Range: -40C~105C Low Power Loss & DCR Inductance: 1.00uH~10.0uH Isat Max: 3.70 Amps MOX-SPIL-0418 SERIES 3.90mm x 3.90mm x 1.80mm Low Profile, Epoxy Shielded Temp Range: -40C~105C Low Power Loss & DCR Inductance: 1.00uH~10.0uH Isat Max: 4.80 Amps MOX-SPIL-0420 SERIES 4.00mm x 4.00mm x 2.00mm Low Profile, Epoxy Shielded Temp Range: -40C~105C Low Power Loss & DCR Inductance: 2.20uH~3.30uH Isat Max: 2.05 Amps MOX-SPIL-0512 SERIES 4.90mm x 4.90mm x 1.20mm Low Profile, Epoxy Shielded Temp Range: -40C~105C Low Power Loss & DCR Inductance: 2.20uH~10.0uH Isat Max: 2.00 Amps MOX-SPIL-0520 SERIES 4.90mm x 4.90mm x 2.00mm Low Profile, Epoxy Shielded Temp Range: -40C~105C Low Power Loss & DCR Inductance: 1.00uH~47.0uH Isat Max: 5.70 Amps MOX-SPL-3310 SERIES 3.30mm x 2.80mm x 0.90mm Shielded Power Line Inductor Temp Range: -40C~105C High Energy Storage Inductance: 1.00uH~47.0uH Isat Max: 1.68 Amps more info more info MOX-SPL-4020 SERIES 4.80mm x 4.30mm x 2.00mm Shielded Power Line Inductor Temp Range: -40C~105C High Energy Storage Inductance: 15.0uH~100.0uH Isat Max: 0.65 Amps MOX-SPL-5018 SERIES 5.80mm x 5.30mm x 1.80mm Shielded Power Line Inductor Temp Range: -40C~105C High Energy Storage Inductance: 1.20uH~47.0uH Isat Max: 1.90 Amps MOX-SPL-5022 SERIES 5.80mm x 5.30mm x 3.00mm Shielded Power Line Inductor Temp Range: -40C~105C High Energy Storage Inductance: 1.10uH~100.0uH Isat Max: 4.60 Amps MOX-SPI-4745 SERIES 4.50mm x 4.70mm x 1.40mm Shielded Power Line Inductor Temp Range: -40C~105C High Energy Storage Inductance: 1.50uH~150.0uH Isat Max: 3.00 Amps MOX-SPI-0302 SERIES 3.20mm x 3.20mm x 1.20mm Ultra Miniature High Energy Temp Range: -40C~105C High Energy Storage Inductance: 1.20uH~10.0uH Isat Max: 1.40 Amps MOX-SPI-0303 SERIES 3.20mm x 3.20mm x 1.50mm Ultra Miniature High Energy Temp Range: -40C~105C High Energy Storage Inductance: 1.50uH~22.0uH Isat Max: 2.00 Amps MOX-SPI-0304 SERIES 3.20mm x 3.20mm x 2.00mm Ultra Miniature High Energy Temp Range: -40C~105C High Energy Storage Inductance: 1.50uH~47.0uH Isat Max: 1.80 Amps MOX-SPI-4012S SERIES 4.00mm x 4.00mm x 1.20mm Ultra Miniature High Energy Temp Range: -40C~105C High Energy Storage Inductance: 0.33uH~3300uH Isat Max: 5.25 Amps MOX-SPI-0402 SERIES 4.20mm x 4.20mm x 1.20mm Ultra Miniature High Energy Temp Range: -40C~105C High Energy Storage Inductance: 1.20uH~27.0uH Isat Max: 2.40 Amps MOX-SPI-0403 SERIES 4.20mm x 4.20mm x 1.80mm Ultra Miniature High Energy Temp Range: -40C~105C High Energy Storage Inductance: 1.20uH~33.0uH Isat Max: 2.30 Amps MOX-SPI-0502 SERIES 5.20mm x 5.20mm x 2.50mm Ultra Miniature High Energy Temp Range: -40C~105C High Energy Storage Inductance: 0.47uH~1000uH Isat Max: 6.00 Amps MOX-SPI-0602 SERIES 6.20mm x 6.20mm x 3.00mm Ultra Miniature High Energy Temp Range: -40C~105C High Energy Storage Inductance: 2.70uH~100uH Isat Max: 2.70 Amps MOX-SPI-3010 SERIES 3.00mm x 3.00mm x 1.00mm Wafer Thin Ultra Low Profile Bifilar Wound Inductors Temp Range: -40C~105C Inductance: 1.00uH~22.0uH Isat Max: 1.45 Amps MOX-SPI-3015 SERIES 3.00mm x 3.00mm x 1.50mm Wafer Thin Ultra Low Profile Bifilar Wound Inductors Temp Range: -40C~105C Inductance: 1.50uH~22.0uH Isat Max: 1.50 Amps MOX-SPI-4014 SERIES 4.00mm x 4.00mm x 1.40mm Wafer Thin Ultra Low Profile Bifilar Wound Inductors Temp Range: -40C~105C Inductance: 1.50uH~47.0uH Isat Max: 1.80 Amps MOX-SPI-1205 SERIES 12.5mm x 12.5mm x 6.00mm Shielded Power Inductors Surface Mount, High Current Temp Range: -40C~125C Inductance: 10uH~1000uH Isat Max: 7.45 Amps MOX-SPI-1205P SERIES 12.5mm x 12.5mm x 6.50mm Shielded Power Inductors Surface Mount, High Current Temp Range: -40C~125C Inductance: 10.0uH~1000uH Isat Max: 7.45 Amps MOX-SPI-1205R SERIES 12.5mm x 12.5mm x 8.00mm Shielded Power Inductors Ultra High Current Temp Range: -40C~125C Inductance: 1.40uH~1000uH Isat Max: 30.50 Amps MOX-SPI-1205PM SERIES 12.5mm x 12.5mm x 6.00mm Dual Winding Parallel Design Single, Coupled, 1:1 Transformer Temp Range: -40C~125C Inductance: 1.40uH~1000uH Isat Max: 31.00 Amps MOX-SPI-1207 SERIES 12.5mm x 12.5mm x 8.00mm Shielded Power Inductors Surface Mount, High Current Temp Range: -40C~125C Inductance: 1.20uH~1000uH Isat Max: 13.80 Amps MOX-SPI-1207PM SERIES 12.5mm x 12.5mm x 8.00mm Dual Winding Parallel Design Single, Coupled, 1:1 Transformer Temp Range: -40C~125C Inductance: 0.50uH~1000uH Isat Max: 18.00 Amps MOX-SPI-1210 SERIES 12.5mm x 12.5mm x 10.0mm Shielded Power Inductors Surface Mount, High Current Temp Range: -40C~125C Inductance: 1.20uH~1000uH Isat Max: 15.50 Amps DON’T SEE WHAT YOUR LOOKING FOR? MoxiE offers custom designs on all of our magnetic component products to meet your individual project requirements. From custom inductance values, to complete custom packages, MoxiE has the expertise to meet your specific design without compromise. Our design team can provide you custom specifications in days not weeks and our quick-turn production on samples and prototypes is the quickest in the industry. That’s MoxiE. MOX-SPIL-0402 SERIES 6.60mm x 4.50mm x 2.93mm Shielded Power Inductors Surface Mount, Low Profile Temp Range: -40C~85C Inductance: 1.0uH~10000uH Isat Max: 3.00 Amps MOX-SPIL-0804 SERIES 12.95mm x 9.4mm x 5.08mm Shielded Power Inductors Surface Mount, Low Profile Temp Range: -40C~85C Inductance: 1.0uH~1000uH Isat Max: 11.20 Amps MOX-SPHL-0804 SERIES 12.95mm x 9.4mm x 5.08mm Shielded Power Inductors Surface Mount, Low Profile Temp Range: -40C~125C Inductance: 1.0uH~47.00uH Isat Max: 5.70 Amp MOX-SPIL-1306 SERIES 18.54mm x 15.24mm x 7.62mm Shielded Power Inductors Surface Mount, Low Profile Temp Range: -40C~85C Inductance: 10uH~1000uH Isat Max: 3.90 Amps
